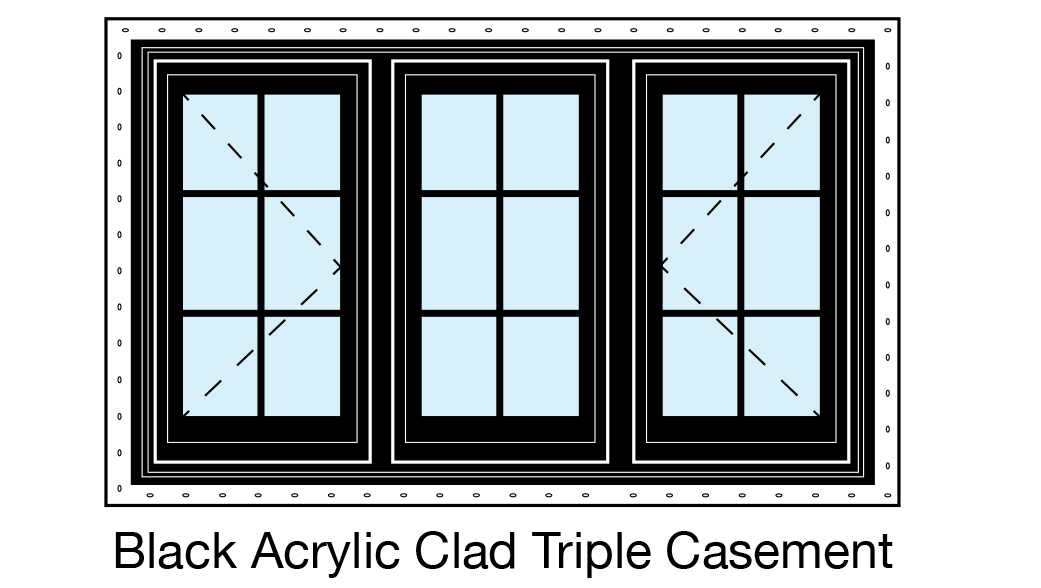

Equal Lite - Triple Casement LSR
New Construction Window

Standard Unit Includes

3 1/4" Frame, 1 1/6" Overall Glazing, Nail Fin, J-Channel, Full Screen, Roto Hardware, Triple Glazed Low E Argon, .22 U-Factor

Size Info

Valid Widths: 51"-102"
Valid Heights 24"-72"
Not to exceed Maximum United Inch 156

Optional

Profile Grids
Simulated Divided Line
Frame: Remove J-Channel, New England Trim Kit, Mullion Assembly
Glass: Obscure, Tempered Glass, Tempered Obscure, Trustgard Single, Trimax Single , Equalite Triple LSR,Equalite Triple Max Trustgard Twin Venting Trimax Twin Venting
Accessories: New England Trim Kit w/ Bead, New England Trim Kit Picture Frame, New England Trimkit Picture Frame w/ Bead
Hardware: Roto Egress Hardware (28" Minimum Width), Roto Corner Drive Hardware

Extension Jambs

Primed Pine: 4-5/8", 6-5/8"
Clear Pine: 4-5/8", 6-5/8"
Custom size and species: Ask for Quote
